RJ41F-16C、25、 40型 RJ41N-16C、25、 40型

燃?xì)饨刂归yRJ41

PN10~40

DN15~300

沈陽鄭高閥門有限公司燃?xì)饨刂归yRJ41NF

一、燃?xì)饨刂归yRJ41F RJ41N結構特點

RJ41F型結構特點

1、采用彈性PTEE作為動密封自補償填料，具有自密封性能。
2、大徑密封圈或倒密封結構，使別胞封維護安全可靠。
3、設置閥桿防塵圈，保護閥門內部部件不受外部環境侵蝕。
4、閥體為桶形結構，強度高，外形美觀。密封副采用防火結構。
5、非強制動密封結構，啟閉扭矩小，手輪操作平穩。
1.Adopt elastic FTEE as dynamical saline

seif-cmpensating filling, which possrss

self-sealing performance.
2. Large diameter seal ring or back seal

structure can ansure the safety and

reliability of dynamical sealing.
3. Equipped with dustproof ring of valve

handle in order to protect the interior

parts of valve from erosion of exterior

arvironmart.
4. The valve body adopts barrel stnrcture

and possesses high intensity and beautiful

appeararue. The sealed auxiliary adopts

the fireproof structure.
5. Non-forcible dynamical sealing stnchue

posers small open and close torque. The

handwheel can be smoothly operated.

RJ41N型結構特點

1、該閥專為石油液化氣的管路成裝置設計.
2、密封副采用尼龍1010對不銹鋼，密封可靠。可靠的上密封裝置嚴密保護填料，絕無外漏。
3、采用防火結構，即使軟密封材料燒損，金屬密封仍能起到作用。
1.The valve is specially designed for the pipeline

or equipment of petroleum and liquefied gas.
2.The sealed auxiliary adopts nylon 1010 stainless

steel. The sealing is reliable. Reliable upper

sealing equipment can strictly protect the filling

and absolutely avoid the leakage.
3.Adopts the fireproof structure.Even if the soft

sealing material is burned,the metal seal still

takes effect.

二、燃?xì)饨刂归yRJ41F RJ41N主要性能規范

主要性能規范 The technical data
型號 type	試驗壓力 MPa			適用介質 suitable medium	適用溫度 suitable temp
	殼體shell test	液密封seat test	氣密封gas seal test
RJ41F-25	3.8	2.75	2.5MPa壓縮空氣	石油液化氣、煤氣、天然氣、氨氣等	-40℃ ～ +80℃
RJ41F-40	6.0	4.4	4.0MPa壓縮空氣

三、燃?xì)饨刂归yRJ41F RJ41N主要零部件材料

主要零部件材料 Material of main parts
零件名稱 name of part		閥體、閥蓋 Bonnet	密封副材料 seat test material	閥桿 disc	填料 packing
型號 type	RJ41N-25 RJ41N-40	WCB	尼龍、PTFE+、1Cr18Ni9Ti	2Cr13	PTFE

二、燃?xì)饨刂归yRJ41F RJ41N主要外形尺寸及

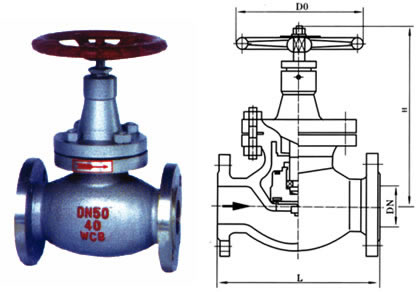

主要外形尺寸及連接尺寸 Main size of Apperance
公稱壓力 MPa	圖中符 sign	公稱通徑 DN/mm
公稱壓力 MPa	圖中符 sign	20	25	32	40	50	65	80	100	150	200
2.5 4.0	L	150	160	180	200	230	290	310	350	480	600
	D0	140	140	180	200	240	280	320	360	400	500
	H	262	280	290	33O	350	400	430	465	610	722
	H1	275	295	308	355	380	420	460	506	692	830
