J41H J41Y J41W 手動截止閥

沈陽鄭州高壓閥門手動、電動截止閥

一、手動截止閥J41H J41Y J41W主要特點及用途

主要特點及用途

structural features and purpose

1、結構設計合理，剛性好，密封性能好.
2、在啟閉過程中.閥瓣與閥座密封間幾乎無磨擦，因而耐磨。
3、開啟高度小即可達到流量。
4、可安裝在管道的任意位置。
5、填料采用柔性石墨，啟閉靈活.密封可靠。
6、大口徑手動閥門配置撞擊手輪.
7、廣泛應用于石油、化工、火力發電等水、燕汽、油品管路上作接通和截斷介質。改變閥瓣形狀可用于系統介質的節流。

1.Reasonable stnrctural design, good rigidity and goodsealmg performance.
2. In the course of open and close, nearly no abrasion is between the valve flap and valve suit. So, it is wearable.
3. Small open height can reality the flux.
4. Can be installed in any position of pipeline.
5. The filling adopts soft graphite, which can reach flexible open and dose and reliable sealing.
6. Large diameter manual valve is equipped with bump hand wheel.
7. Be widely cscd in the pipeline of water, vapor and oil prodtcts of petroleum, chemical indistry, thermal power for connection and dam media. To change the valve flap shape can throttle for systematic media.

二、手動截止閥J41H J41Y J41W相關

性能規范及主要零件材料：The main technical data
型號 type	試驗壓力 testing pressure			適用介質 suitable medium	適用溫度 suitable temperature	零件材料 Material of main parts					手輪 handwheel
型號 type	殼體shell seal	液密封 water seal	氣密封 gas seal	適用介質 suitable medium	適用溫度 suitable temperature	閥體閥蓋 Body Bonnet	閘板閥座 disc、Sealing	閥桿 Stem	閥桿螺母 stem nat	填料 packing	手輪 handwheel
J41H-16	1.5PN	1.1PN	0.6Mpa	水蒸汽、油品、導熱油等 water steam petrolcam transmit heat the oil	≤200℃	HT200	2Cr13	1Cr13	鋁青銅 aluminium-bronze	柔性石墨 expanded graphite	Qt450-10
J41H-25Q					≤350℃	Q450-10	2Cr13
J41H-16C～160					≤425℃	WCB	2Cr13
J41W-16P～160P J41Y-16P～160P				硝酸類 nitric acid	≤200℃	CF8	CF8	304		PTFE
J41W-16R～160R J41Y-16R～160R				醋酸類 acetic acid	≤200℃	CF8M	CF8M	316		PTFE
J41Y-16I～160I				水蒸汽、油品、導熱油等 water steam petrolcam Transmit heat the oil	≤550℃	Cr5Mo	Cr5Mo	25Cr2MoV		柔性石墨 expanded graphite	WCB

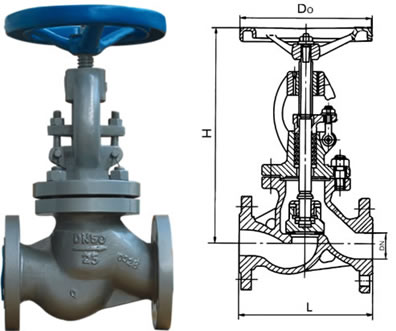

三、手動截止閥J41H J41Y J41W主要外形尺寸及連接尺寸

主要外形尺寸及連接尺寸 Main size of Apperance
公稱壓力 Mpa	圖中符號 sign	公稱通徑 DN/mm
公稱壓力 Mpa	圖中符號 sign	l5	20	25	32	40	50	65	80	100	125	150	200	250	300	350	400

1.6	L	130	150	160	180	200	230	290	310	350	400	480	600	650	750
	H	233	275	285	302	310	320	330	355	415	460	510	590	685	870
	Do	120	140	160	180	200	200	240	240	280	320	360	400	400	500
	Ho						645	690	715	770	780	810	967	1143	l292
	電裝 electric actuators						Z10	Z10	Z15	Z20	Z30	Z45	Z60

2.5	L	130	150	160	180	200	230	290	310	350	400	48O	600	650	750
	H	233	275	285	302	355	362	375	436	48O	558	611	72l	750	870
	Do	120	l140	160	180	200	240	280	320	360	400	400	400	500	600
	Ho						645	690	715	770	780	810	967	1143	1292
	電裝 electric actuators						Z10	Z10	Z15	Z20	Z30	Z45	Z60	Z90	Z120

4.0	L	130	150	160	180	200	230	290	310	350	400	480	600
	H	233	275	285	302	355	362	375	436	480	558	611	72l
	Do	120	140	160	180	200	240	280	320	360	400	400	500
	Ho						645	690	715	770	780	875	1160
	電裝 electric actuators						Z10	Z10	Z20	Z30	Z45	Z60	Z90

6.4	L	170	190	210	230	260	300	340	380	430	500	550	650
	H	148	15O	175	200	231	262	450	485	537	590	646
	Do	120	160	180	200	240	280	320	360	400	450	450
	Ho						710	750	785	873	1031	1061	1231
	電裝 electric actuators						Z10	Z15	Z30	Z45	Z60	Z90	Z120

10.0	L	170	190	210	230	260	300	340	380	430	500	550	650	775	900
	H	195	228	250	326	359	414	484	547	621	700	840	925	1015	1200
	Do	120	160	180	200	240	280	320	400	450	500	500	600	750	800
	Ho						710	750	785	837
	電裝 electric actuators						Z15	Z20	Z30	Z45

16.0	L	170	190	210	230	260	300	340	380	430	500	550	650
	H	148	156	175	200	231	262	470	500	557	613	671	765
	Do	120	140	140	140	160	180	360	400	450	450	500	600
	Ho
	電裝 electric actuators
